VEHICLE SPECS-
CHEQUERED TUNING Holden Commodore VK-L LS1 V8 Twin Turbo
POWER: 455rwkw or 610rwhp @ 6psi (standard engine on the lowest boost possible)

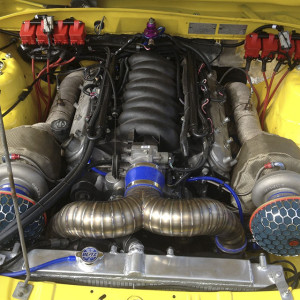

Engine:
LS1 V8 5.7L
4 stage AVIAID dry sump kit
Twin 10cm TD06HL2-20g turbos
Twin 45mm Turbosmart wastegates
Crow Cams Camshaft, pushrods and valve springs.
RACEPAK GPS logger dash
Factory GM ECU tuned by Chequered Tuning Tel: 0414944146
Fuel:
Injector Dynamics ID1000cc from www.tuffcarparts.com Tel: 1300468833

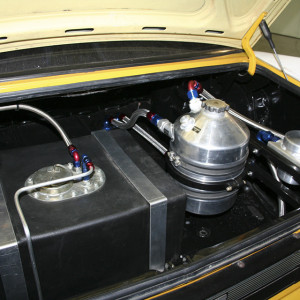

JAZZ fuel cell
Dual BOSCH 044 fuel pumps
Exhaust/Intake:
Custom exhaust 3.5 inch oval made by Dean Clark at FORCED MOTORWORX (03)97940791
HENDRICK motorsports NASCAR “boom pipes”
Custom exhaust manifolds sched10 and intercooler piping by HAVOC FABRICATIONS Tel: 0430106414
R35 GTR intercooler
Gearbox:
T56 6 speed gearbox
B&M Shifter
McLEOD RXT twin plate clutch
Chrome moly flywheel
Suspension:
Coilovers with custom damper rates by SHOCKWORKS (03)9756-7769
Custom modified factory lower control arms and JDI Fabrication Knuckles
Custom rear coilover mounts extra lock knuckles by JDI FABRICATION Tel: 0412087828
Manual power steering rack with Custom GM power assisted steering column
WHITELINE sway bars, adjustable upper control arms, lower control arms and caster rods
All bushes replaced with urethane ones
Differential:
Driveshaft by GJ DRIVELINES (03)97063166
3.45:1 ratio diff with Full billet spool and MOSER 31 spline axles by SUPATRIK diffs (03)97931915
Brakes:
Front 345mm rotors with HARROP 4 spot calipers
JDI Dual rear caliper setup
Rear 315mm rotors with HARROP 4 spot calipers
Rear VE commodore calipers on UPC adapters for handbrake
Full floor mounted pedal box
Braided brake Lines throughout by MALTECH Tel: 0418378939
Vacuum assisted hydraulic handbrake.
Body:
Full HDT Group C body kit
N1 GTR intercooler vents
Full roll cage and floor plates by DS INDUSTRIES (Scott 0422239655)
BRIDE zeta II drivers seat
BRIDE passenger seat
DRIFT FIA harness’s
Painted Canary Yellow by DT PANEL’S (03)9562-3633 or 0402611670
Graphics done by DRIVEN DESIGN’s (Jono Stephenson 0403034055)
Wheels and Tyres:
For the front two 18 inch x 9 inch Rota Rim’s
For the rear six 18 inch x 11 inch Rota Rim’s for drifting and powder coated white by WHEELTECH (03)97923717
Tyre supplier, fitting and wheel allignments by Motorsport Wheels and Tyres, Dandenong (03)9793-324
